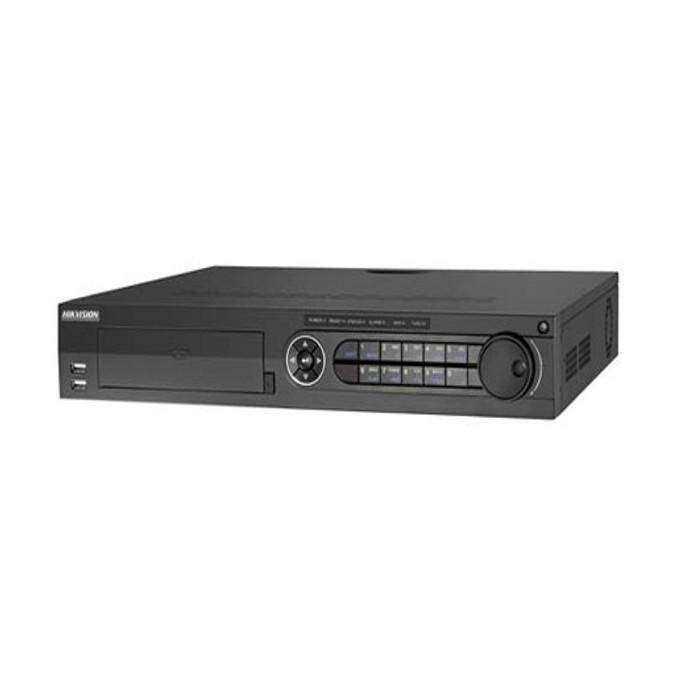

Description Hikvision DS-7316HUHI-K4/S 16 Channel Turbo DVR 16-ch 5 MP 1.5U H.265 DVR 16 channels and 4 HDDs 1.5U DVR Efficient H.265 pro compression technology Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) Up to 32 network cameras can be connected Supports POS triggered recording and POS information overlay Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks Recording Video CompressionH.265 Pro /H.265 Pro/H.265/H.264 /H.264 Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Frame Rate Main stream: 8 MP@8fps/5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) Video Bitrate32 Kbps to 10 Mbps Dual-StreamSupport Stream TypeVideo, Video & Audio Audio CompressionG.711u Audio Bitrate64 Kbps Video And Audio IP Video Input 16-ch (up to 32-ch) Up to 8 MP resolution Support H.265 /H.265/H.264 /H.264 IP cameras Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 AHD Input5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30 HDCVI Input4 MP, 720p25, 720p30, 1080p25, 1080p30 CVBS InputPAL/NTSC CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output2-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent) Synchronous Playback16-ch Network Remote Connection128 Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface Auxiliary Interface SATA4 SATA interfaces ESATASupport CapacityUp to 10 TB capacity for each disk Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard Alarm In/Out16/4 USB InterfaceFront panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0 General Power Supply100 to 240 VAC Consumption≤ 65 W Working Temperature-10 °C to 55 °C ( 14 °F to 131 °F) Working Humidity10% to 90% Dimension (W × D × H)445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) Weight≤ 5 kg (11.0 lb)
