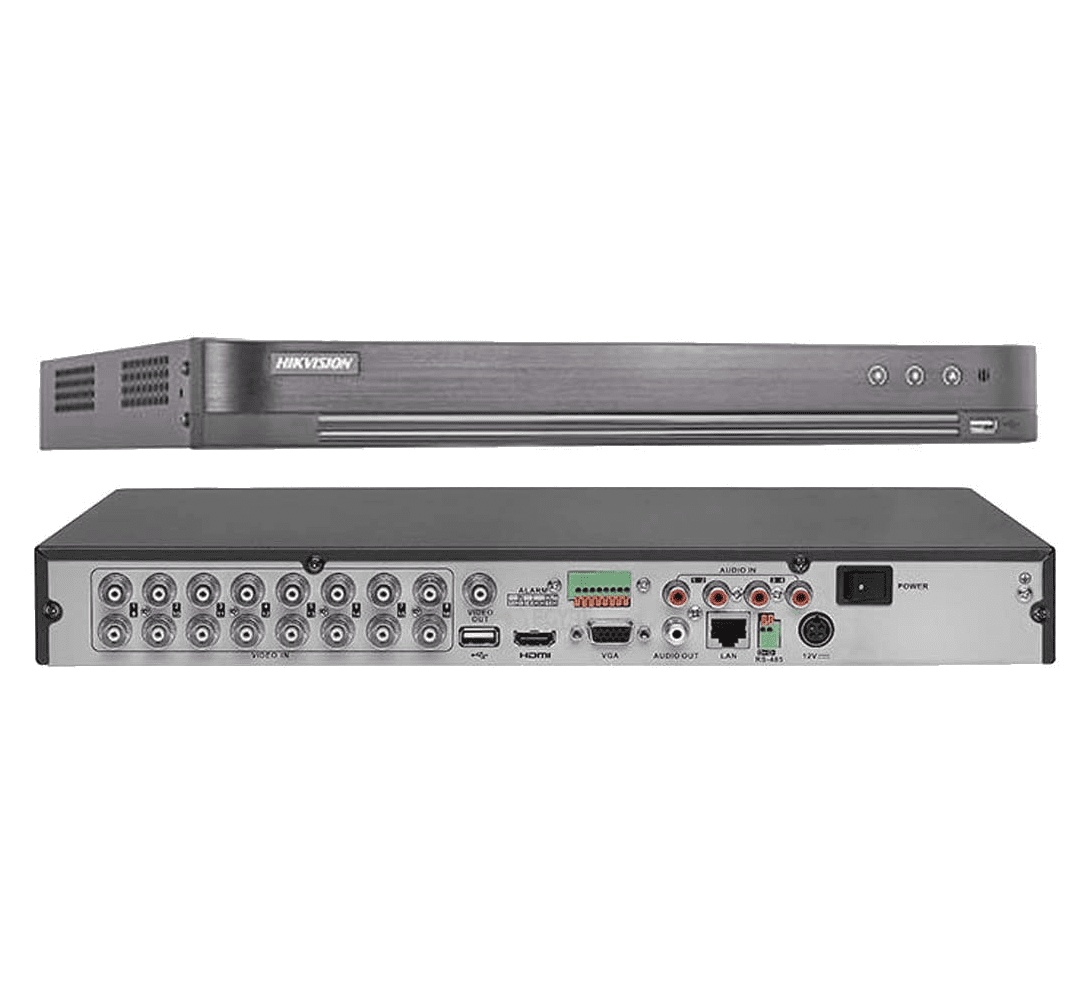

Hikvision iDS-7216HUHI-M2/P 16CH POC DVR 8MP

Description Hikvision iDS-7216HUHI-M2/P 16CH POC DVR 8MP Hikvision iDS-7216HUHI-M2/P 16CH POC  16-ch 5 MP 1U H.265 AcuSense POC DVR 16-ch 5MP 1U H.265 AcuSense POC DVR Transmits both HDTVI video and power over the same coaxial cable 16 channels and 2 HDD 1U DVR Efficient H.265 pro compression technology Encoding ability up to 8MP @8 fps ，5 MP @ 12 fps 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) Up to 32 network cameras can be connected Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Perimeter Protection Line Crossing Detection/Intrusion DetectionUp to 4-ch Facial Detection Facial Detection And CaptureFace picture detection, face picture search Recording Video CompressionH.265 Pro /H.265 Pro/H.265/H.264 /H.264 Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Frame Rate Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate32 Kbps to 10 Mbps Dual-StreamSupport Stream TypeVideo, Video & Audio Audio CompressionG.711u Audio Bitrate64 Kbps Video And Audio IP Video Input 8-ch (up to 24-ch) Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265 /H.265/H.264 /H.264 IP cameras Analog Video Input 16-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection PoC Camera Input Support Hikvision PoC camera HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz CVBS InputPAL/NTSC CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Synchronous Playback16-ch HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps Video Output ModeHDMI/VGA simultaneous output Audio Output1-ch, RCA (Linear, 1 KΩ) Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) Network Total Bandwidth128 Mbps Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connection128 Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface Auxiliary Interface SATA2 SATA interfaces CapacityUp to 10 TB capacity for each disk Serial InterfaceRS-485 (half-duplex) USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 Alarm In/Out4/1 General Power Supply100 to 240 VAC, 50 to 60 Hz Consumption≤ 20 W (without HDD) Working Temperature-10 °C to 55 °C ( 14 °F to 131 °F) Working Humidity10% to 90% Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) Weight≤ 3.8 kg (without HDD, 8.4 lb.)
