Butt – 14/16 to 10/12

$ 2.36

Categories: ,

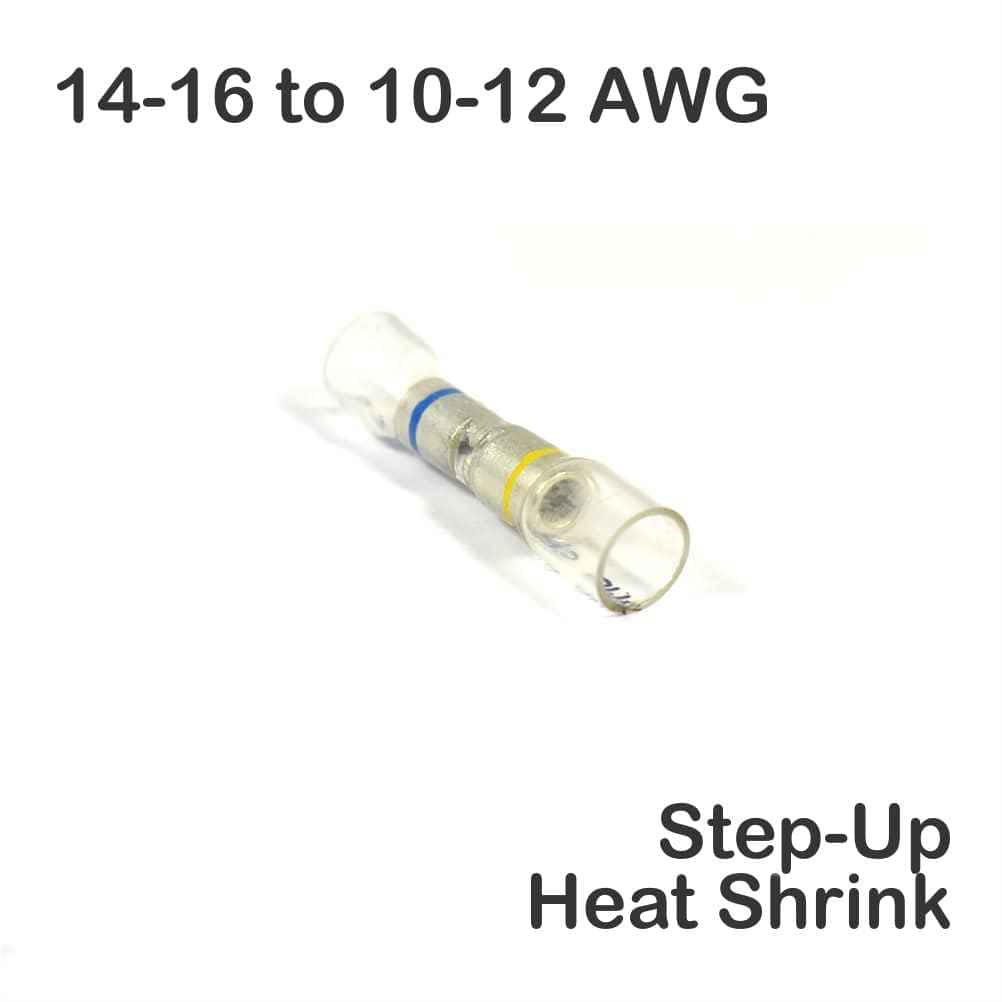

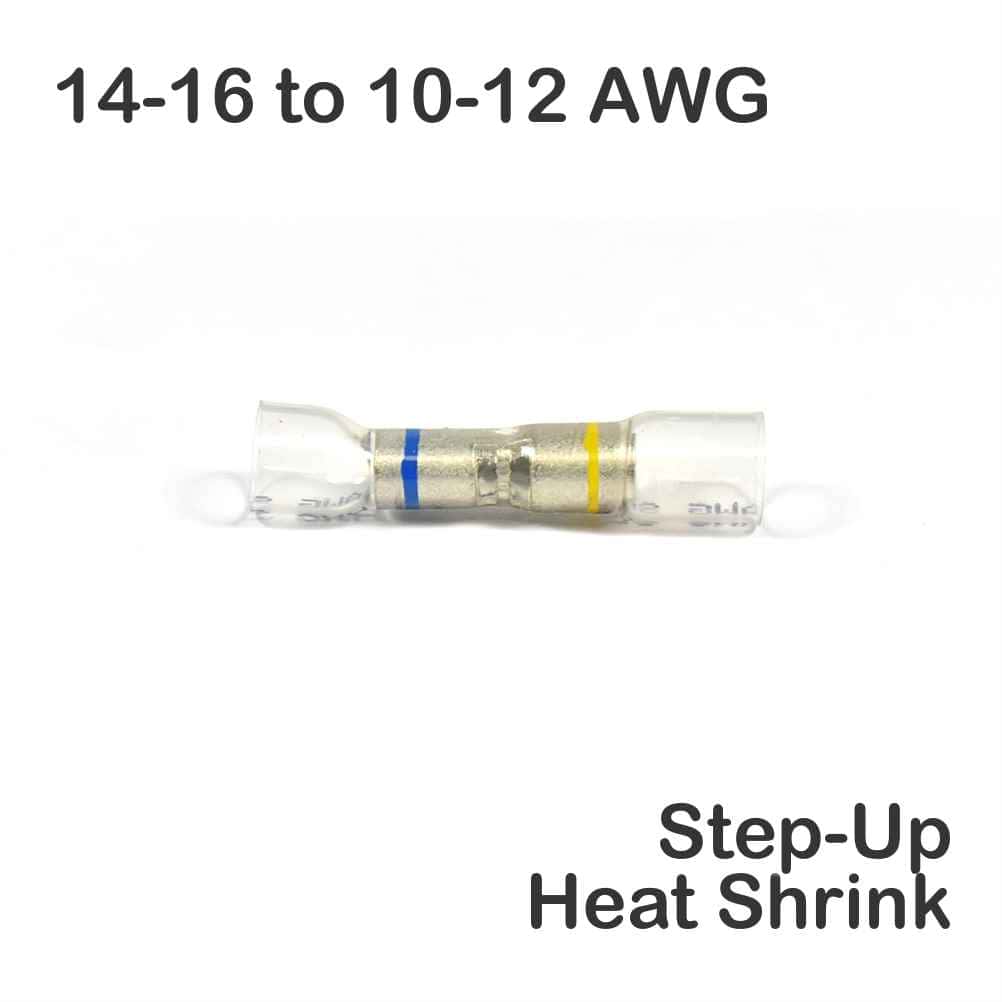

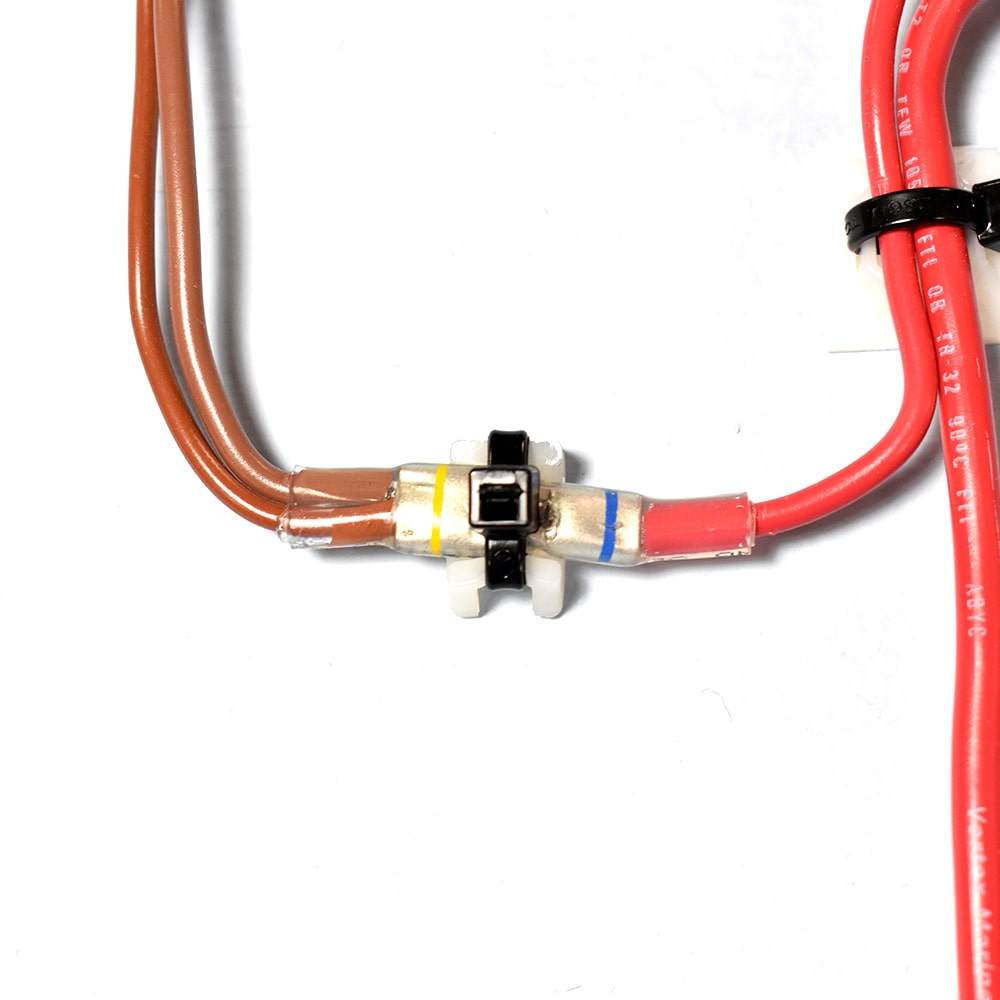

Product Description 14-16 to 10-16AWG  Step-up Butt Connector Our assembly guys love this little heat shrink butt connector.  It’s a step-up, with one side accepting a 14 or 16AWG (blue side), and the other side a 10 or 12AWG (yellow side). It’s also great as a 3-way splice, where you could put two 14AWGs into the yellow side and a single 14 or 16AWG into the blue side.  This is super common in bilge pump wiring when you want to splice a manual feed from the switch, and an automatic feed from a float switch into the same pump.  See our product photos as an example of this. This butt splice features a tinned plated copper barrel (with center point stop), and adhesive lined heat shrink wrap.  Zoom in on the third photo to see how well the adhesive seals the opening even with two conductors on the same side. Specs: Category: Butt Type: Step-up Wire Size: 14-16AWG (blue) and 10-12 AWG (yellow)

Related products

  • Double Quick Connect

    Techno 860 Seating Range

    Techno 860 Highback chair shown with standard nylon base.
    Techno 860 Highback chair shown with height adjustable arms and polished aluminium base.
    Techno 860 Mediumback chair shown with nylon base.
    Techno 860 Visitors chair with chrome frame.
    Techno 860 Visitors chair shown with flexi arms.
    Techno 860 Vistors side chair.
    Techno 860 Visitors chair shown with wedge frame.

    Quick View

  • Quick Connect 10-12

    Vigano Seating Range

    Vigano Highback chair shown with PU flexi arms, Donati side tension synchro and chrome base.
    Vigano Mediumback chair shown with PU flexi arms, passive synchro and nylon base.
    Vigano Mediumback chair side view showing chrome back bar.
    Vigano Highback chair shown with ski arms, econo synchro nylon base.
    Vigano Visitors side chair.
    Vigano Visitors chair     showing chrome back bar, available on all highback, mediumback and visitors chairs.
    Vigano Curved Integral visitors chair shown with black frame.
    Vigano Curved Integral visitors chair shown with chrome frame.

    Quick View

  • Butt Connector 18-20

    Airo Seating Range

    Airo Highback Chair shown with headrest, econo synchro mechanism, height adjustable arms and high polished aluminium base.
    Airo Highback Chair side view.
    Airo Mediumback Chair shown with econo synchro mechanism, height adjustable arms and high polished aluminium base.
    Airo Sleighbase Visitors Chair (arms are optional).

    Quick View

  • Quick Connect 18-20

    Techno 2000 Seating Range

    Techno 2000 Highback chair, angled view, shown with chrome wishbone armrests and chrome spider base.
    Techno 2000 Meduimback chair shown with flexible armrests and aluminium base.
    Techno 2000 Mediumback chair, angled view, shown with flexible armrests and chrome base.
    Techno 2000 Visitors chair, back view shown with standard sleighbase frame.
    Techno 2000 Visitors chair, angled view, shown with standard sleighbase frame.
    Techno 2000 Visitors chair shown with chrome wishbone armrests and PU caps.

    Quick View

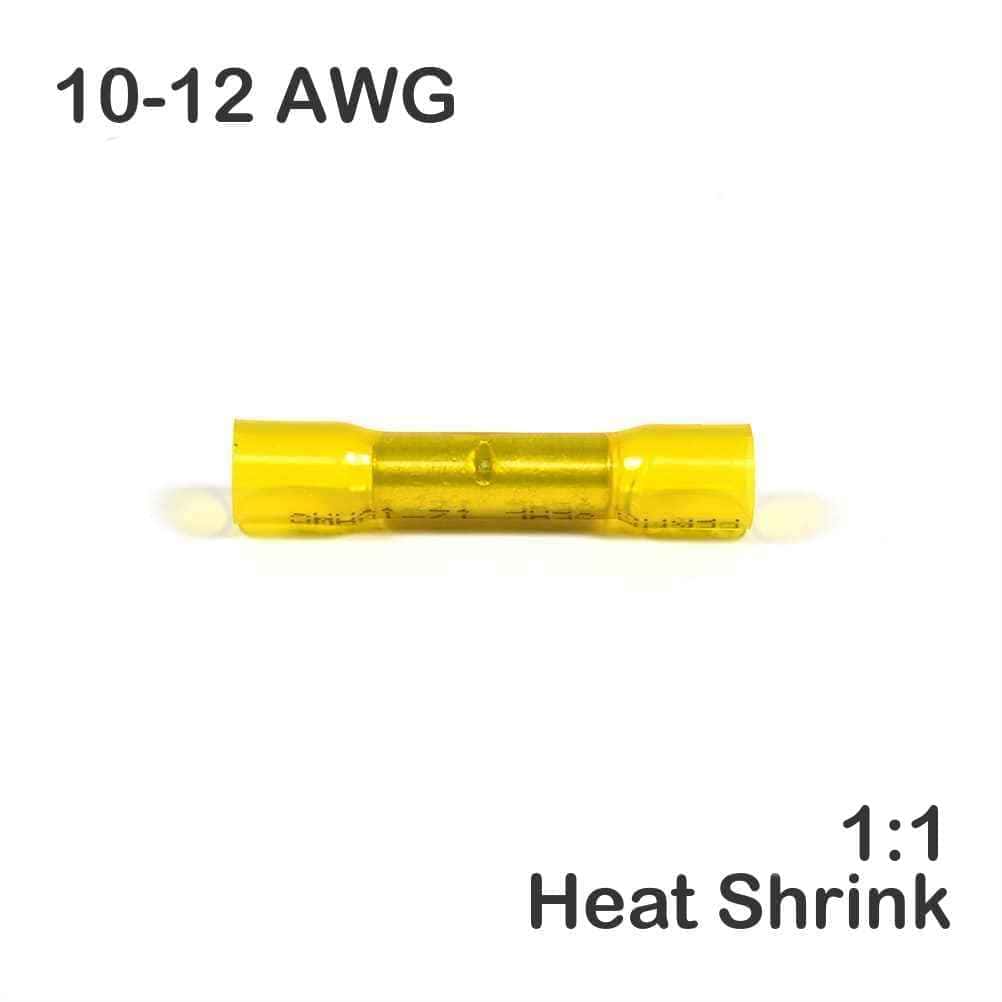

Butt Connector 10-12Ring Connector 14-16
